Zhejiang Zhanbo Diaphragm Pump Manufacturing Co., Ltd. is a professional wholesale 2 Inch Double Diaphragm Pump supplier and custom QBK-50 PVDF DN50 88GPM Pneumatic Diaphragm Pump maker integrating R&D, production, sales and service. The company's founding process can be traced back to 1989. It has always focused on the field of diaphragm pumps. It is the main drafting unit of the pneumatic diaphragm pump specification and an expert in diaphragm pumps.
The company has successively obtained the national "high-tech" enterprise certification and the EU CE certification. So far, it has obtained many patents and passed the ISO9001 international quality system certification. It is a demonstration enterprise for scientific and technological innovation and achievement transformation.
The company also has a complete integrated service system: pre-sales technicians answer various technical inquiries, provide one-stop service suggestions according to customer needs, select suitable products for you, and determine reasonable solutions and quotations based on the above information and product quality, delivery cycle, etc. After-sales services include product installation, use, maintenance, troubleshooting, etc. We will continue to work hard to provide you with good products and services.
The company adheres to the business philosophy of "three specializations", "single-minded, professional, and focused". Based on implementing comprehensive quality management, it uses sophisticated process equipment and "excellent internal quality and similar appearance quality of handicrafts" to create a user-first service awareness to meet customer needs. The company has won wide praise from domestic and foreign customers for its high-quality and thoughtful after-sales service. Its products are sold to more than 30 provinces and cities across the country and the United States, Europe, Singapore, Myanmar, Australia, Africa, Vietnam, and other foreign markets.
We sincerely invite Chinese and foreign merchants, users from all walks of life, and friends to come to inspect and negotiate trade. We are willing to work hand in hand with you on the road to success and compose a triumphant song together.

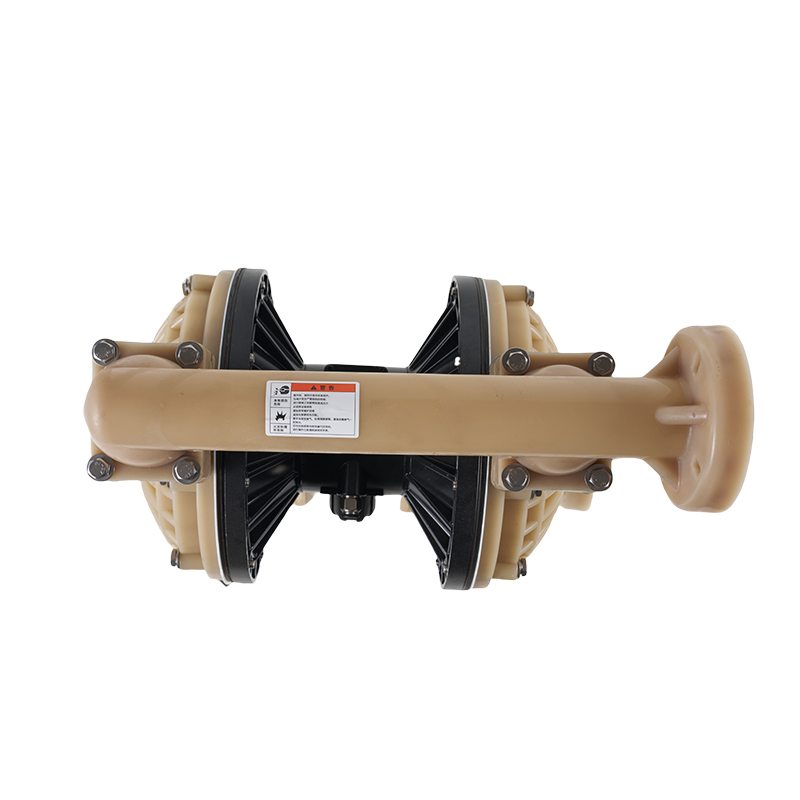

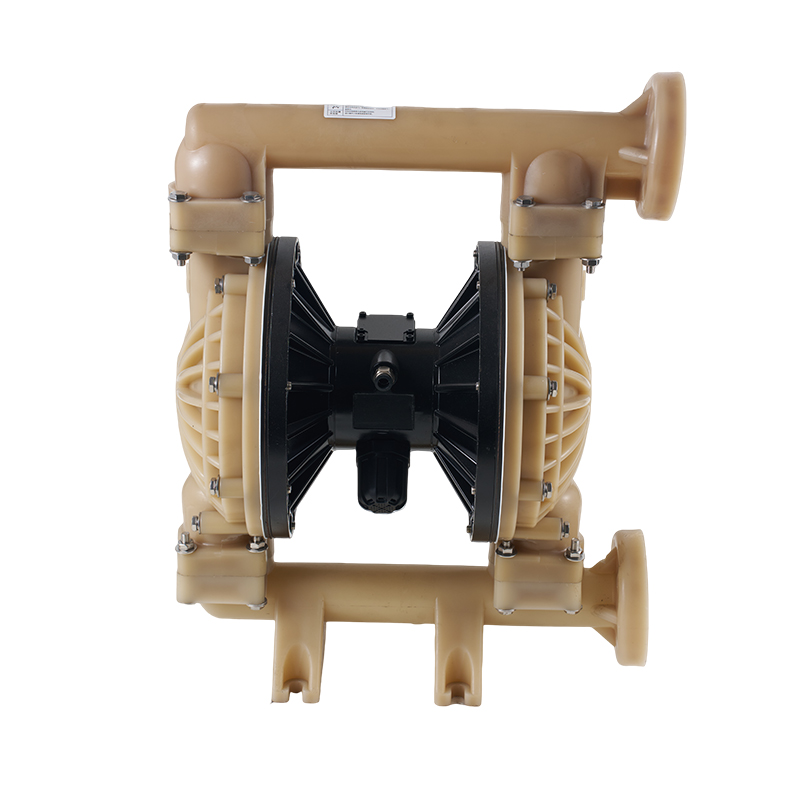

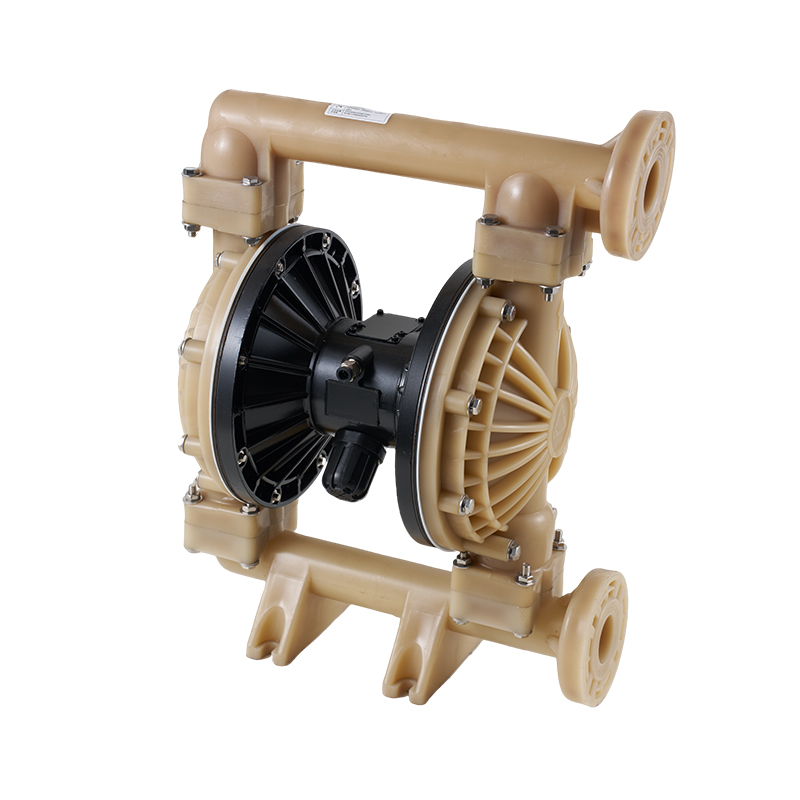

QBK-50 PVDF DN50 88GPM Pneumatic Diaphragm Pump
QBK-50 PVDF DN50 88GPM Pneumatic Diaphragm Pump is a corrosion resistant pumping solution designed for demanding industrial fluid transfer applications. We went with a tough PVDF casting for the main housing block because standard plastics just can't stand up to hot acids, nasty solvents, or high-purity chemical lines over long shifts. It connects up to a 2-inch (DN50) line size and pushes out a steady 88 GPM flow capacity, which hits a highly practical sweet spot for running busy pharmaceutical lines, emptying out chemical treatment sumps, or managing specialized industrial loops.The main win with this setup is that it draws its power strictly from your shop's compressed air lines. Cutting out the electrical components completely means you don't have to fiddle with wiring codes or worry about short circuits in damp, splash-heavy bays.
Performance parameters
|
Model |
Max Flow Rate (m³/h) |
Head (m) |
Exit pressuse (kgf/cm²) |
Sucked lift (m) |
Max grain Dia (mm) |
Max pressure (kgf/cm²) |
Consumption Max air (m³/min) |
Max air consumption (m³/min) |
Pump |
|
|
Inlet |
Outlet |
|||||||||
|
QBK-10 |
0-1 |
0-69 |
6.9 |
5 |
1 |
7 |
0.5 |
0.3 |
Threaded |
1/2" |
|
QBK-15 |
0-1.8 |
0-69 |
6.9 |
5 |
1 |
7 |
0.5 |
0.3 |
Threaded |
1/2" |
|
QBK-20 |
0-3 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.5 |
Threaded |
3/4" |
|
QBK-25 |
0-5 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.5 |
Threaded |
1" |
|
QBK-25I |
0-9 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.6 |
Threaded |
1" |
|
QBK-40 |
0-10 |
0-69 |
6.9 |
5 |
4.5 |
7 |
1 |
0.6 |
Threaded |
1 ½″ |
|
QBK-50 |
0-20 |
0-69 |
6.9 |
5 |
8 |
7 |
2 |
1.2 |
50 Flange |
50 Flange |
|
QBK-65 |
0-25 |
0-69 |
6.9 |
5 |
8 |
7 |
2 |
1.2 |
65Flange |
65 Flange |
|
QBK-80 |
0-30 |
0-69 |
6.9 |
5 |
10 |
7 |
4 |
2 |
80Flange |
80 Flange |
|
QBK-80I |
0-50 |
0-84 |
8.4 |
10 |
10 |
8 |
5 |
3 |
80 Flange |
80 Flange |
|
QBK-100 |
0-40 |
0-69 |
6.9 |
7 |
10 |
7 |
4 |
2 |
100 Flange |
80 Flange |
|
QBK-100I |
0-60 |
0-84 |
8.4 |
10 |
10 |
8 |
5 |
3.5 |
100 Flange |
100 Flange |
|
QBK-125 |
0-70 |
0-84 |
8.4 |
10 |
12 |
8 |
5 |
4 |
125 Flange |
125 Flange |
Drawing of setting data
Exploded view
Parts list
Drawing of setting data
