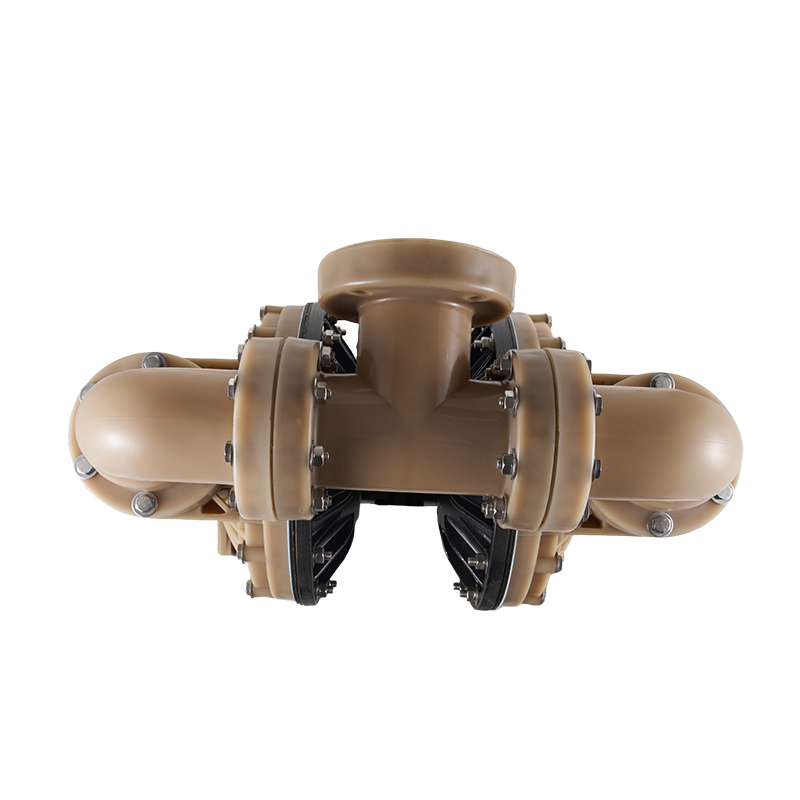

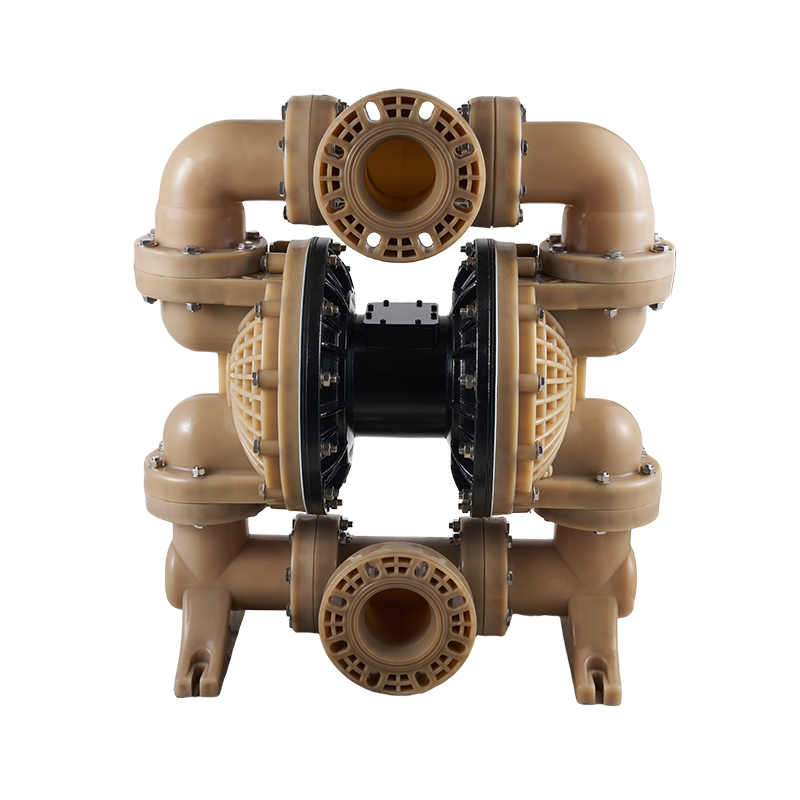

QBK-80 PVDF DN80 132GPM Pneumatic Diaphragm Pump
The QBK-80 PVDF DN80 132GPM Pneumatic Diaphragm Pump is a high performance fluid transfer solution designed for industries requiring chemical resistance and reliable pumping efficiency. We used solid PVDF for the entire casing build because standard plastics just can't hack it when they contact hot acids, aggressive solvents, or high-purity chemical lines. It features a broad 3-inch (DN80) suction and discharge layout and punches out a steady 132 GPM, which gives your crew plenty of raw fluid-moving volume for busy pharmaceutical plants, heavy chemical lines, or industrial treatment sumps.The main win here is that the machine relies entirely on shop air pressure to cycle the diaphragms, so you don't have to drag heavy electrical lines or worry about motor sparks in hazardous areas.
Performance parameters
|
Model |
Max Flow Rate (m³/h) |
Head (m) |
Exit pressuse (kgf/cm²) |
Sucked lift (m) |
Max grain Dia (mm) |
Max pressure (kgf/cm²) |
Consumption Max air (m³/min) |
Max air consumption (m³/min) |
Pump |
|
|
Inlet |
Outlet |
|||||||||
|
QBK-10 |
0-1 |
0-69 |
6.9 |
5 |
1 |
7 |
0.5 |
0.3 |
Threaded |
1/2" |
|
QBK-15 |
0-1.8 |
0-69 |
6.9 |
5 |
1 |
7 |
0.5 |
0.3 |
Threaded |
1/2" |
|
QBK-20 |
0-3 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.5 |
Threaded |
3/4" |
|
QBK-25 |
0-5 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.5 |
Threaded |
1" |
|
QBK-25I |
0-9 |
0-69 |
6.9 |
5 |
2.5 |
7 |
1 |
0.6 |
Threaded |
1" |
|
QBK-40 |
0-10 |
0-69 |
6.9 |
5 |
4.5 |
7 |
1 |
0.6 |
Threaded |
1 ½″ |
|
QBK-50 |
0-20 |
0-69 |
6.9 |
5 |
8 |
7 |
2 |
1.2 |
50 Flange |
50 Flange |
|
QBK-65 |
0-25 |
0-69 |
6.9 |
5 |
8 |
7 |
2 |
1.2 |
65Flange |
65 Flange |
|
QBK-80 |
0-30 |
0-69 |
6.9 |
5 |
10 |
7 |
4 |
2 |
80Flange |
80 Flange |
|
QBK-80I |
0-50 |
0-84 |
8.4 |
10 |
10 |
8 |
5 |
3 |
80 Flange |
80 Flange |
|
QBK-100 |
0-40 |
0-69 |
6.9 |
7 |
10 |
7 |
4 |
2 |
100 Flange |
80 Flange |
|
QBK-100I |
0-60 |
0-84 |
8.4 |
10 |
10 |
8 |
5 |
3.5 |
100 Flange |
100 Flange |
|
QBK-125 |
0-70 |
0-84 |
8.4 |
10 |
12 |
8 |
5 |
4 |
125 Flange |
125 Flange |
Drawing of setting data
Exploded view
Parts list
Drawing of setting data
